Medical CE 0197 approved and USA FDA cleared

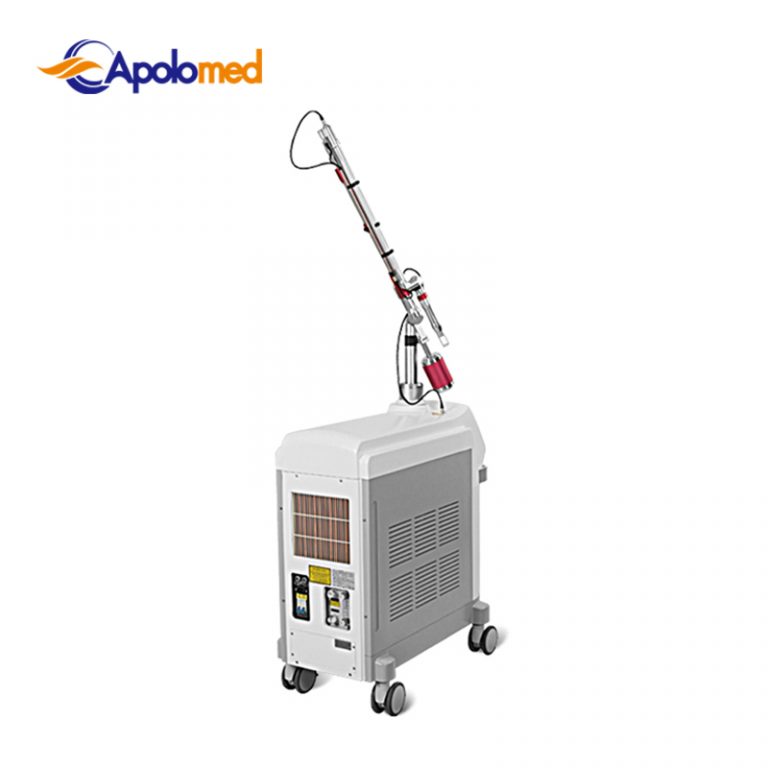

The HS-290E EO q-switched sources can generate a photoacoustic effect targeted at inks and pigmentations leaving the surrounding skin intact. These laser systems are able to fragment the target in small particles making them easily processed by the human body with the phagocytosis process.
The high peak power and short pulse duration delivers efficient destruction of the target chromophore such as tattoo ink, pigment or collagen. The electro-optic (EO) Q-Switch, acting as a high-speed shutter, stores energy between pulses enabling the laser to produce peak power output of 200MW in 6ns pulse width. It forces energy at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin.
| Laser Type | EO Q-Switch Nd:YAG laser |
| Wavelength | 1064/532/585/650nm |
| Operate mode | Q-Switched mode & SPT mode |
| Beam profile | Flat-top mode |
| Pulse width | ≤ 6ns (Q-Switched mode) |
| 300 us (SPT mode) | |
| Pulse energy | Q-Switched 1064 mode: Max.1200mJ |
| Q-Switched 532 mode: Max.500mJ | |
| SPT mode (1064nm) long pluse: Max.1400mJ | |
| Energy calibration | External & self-restoration |
| Spot size | 1~10mm |
| Repetition rate | Max.10HZ(1064nm,532nm,SPT mode) |
| Optical delivery | Articulated arm |
| Operate interface | 9.7″ true color touch screen |
| Aiming beam | Diode 650nm(red), brightness adjustable |
| Cooling system | Advanced air & water cooling system |
| Power supply | AC100V or 230V, 50/60HZ |
| Dimension | 82*30*89cm (L*W*H) |
| Wright | 80Kgs |
