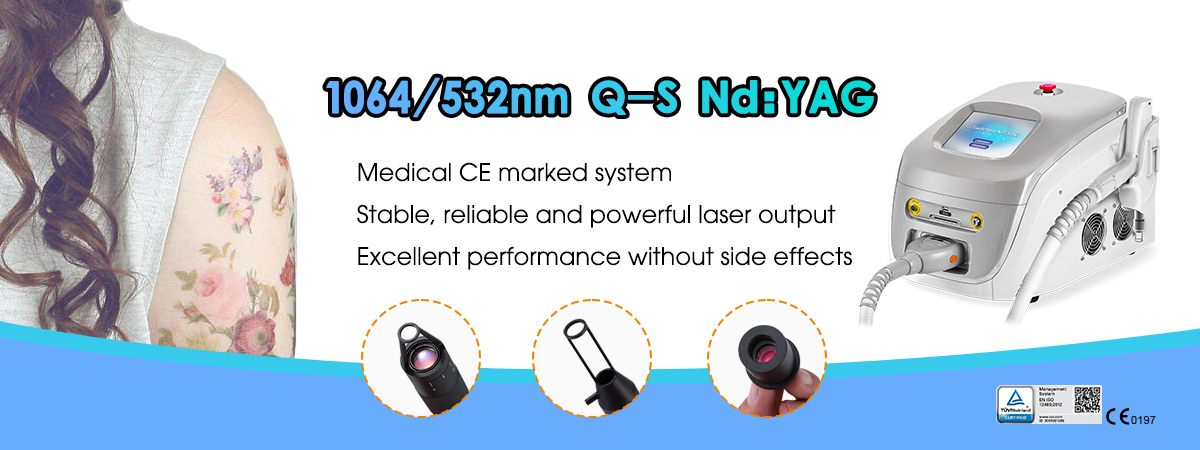

1064nm/532nm Q-Switched ND: YAG Laser
Medical CE marked system
APOLOMED has been produced Q-Switched ND YAG laser over 23 years. HS-220 is an excellent tattoo removal expert, which you can get amazing result even first one time. It is clinically proved to be effective and safety.
1064nm/532nm Q-Switched ND: YAG Laser HS-220 principle
The special wavelength of YAG laser can penetrate skin of human body according to the theory and practice of selective laser decomposing, the instrument used the laser wave to break chromatophore into pieces without damaging normal tissue, which also can be naturally absorbed by the body metabolism.
1064nm/532nm Q-Switched ND: YAG Laser HS-220 handpiece
| Wavelength | 1064nm,532nm | |||
| YAG Bar | φ7 / φ6+7mm (optional) | |||
| Max. Energy | 2400mJ(1064nm) | 1200mJ(532nm) | 4700mJ(1064nm) | 2350mJ(532nm) |
| Pulse Width | <10ns(Single Pluse) | |||
| Repeat rate | 1-10HZ | |||
| Spot size | 1~5mm | |||
| Power | 800W | |||
| Operate interface | 8″ True color touch screen | |||
| Aiming beam | Diode 650nm (red) | |||
| Cooling system | Advanced air & water circulation cooling system | |||
| Power Supply | AC 100V or 230V, 50/60Hz | |||
| Dimension | 53*40*39(L*W*H) | |||
| Weight | 25kgs | |||
Our 1064nm/532nm Q-Switched ND: YAG Laser HS-220 are used in the leading plastic surgery, dermatology,and laser hospitals value Q-switched lasers for their efficacy for a wide of skin issues,mainly for soft peeling and unwanted different kinds of tattoos.
Our team is happy to answer any questions.
